Composition¶

Composition is how Ferrum combines multiple charts (or multiple marks against shared axes) into a single output. Where encoding controls what one chart looks like, composition controls how charts relate to each other.

Ferrum ships six composition operators, each producing a different kind of compound view:

The principles that govern these operators are the same as the rest of Ferrum's grammar: composition is structural, declarative, and produces a value that you can theme, save, render statically or interactively, and embed into larger views. Compound views are the same kind of object as base charts — they accept the same theme, the same renderer, and the same composition operators recursively.

Layering: same axes, multiple marks¶

Layering is the most common form of composition: you have one set of axes and you want more than one mark on it. Scatter + regression line. Bars + value labels. Line + ribbon for uncertainty.

The + operator on Chart always produces a layered view — it never concatenates. When both charts share the same data, the result reuses the original DataFrame. When data differs, the two DataFrames are merged via null-padded diagonal concatenation; each layer's encoding references only its own columns, so the padding is invisible at render time.

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
points = (
    fm.Chart(iris)
    .mark_point(opacity=0.6)
    .encode(x="sepal_length", y="petal_length", color="species:N")
)
trend = (
    fm.Chart(iris)
    .mark_smooth(method="loess")
    .encode(x="sepal_length", y="petal_length", color="species:N")
)

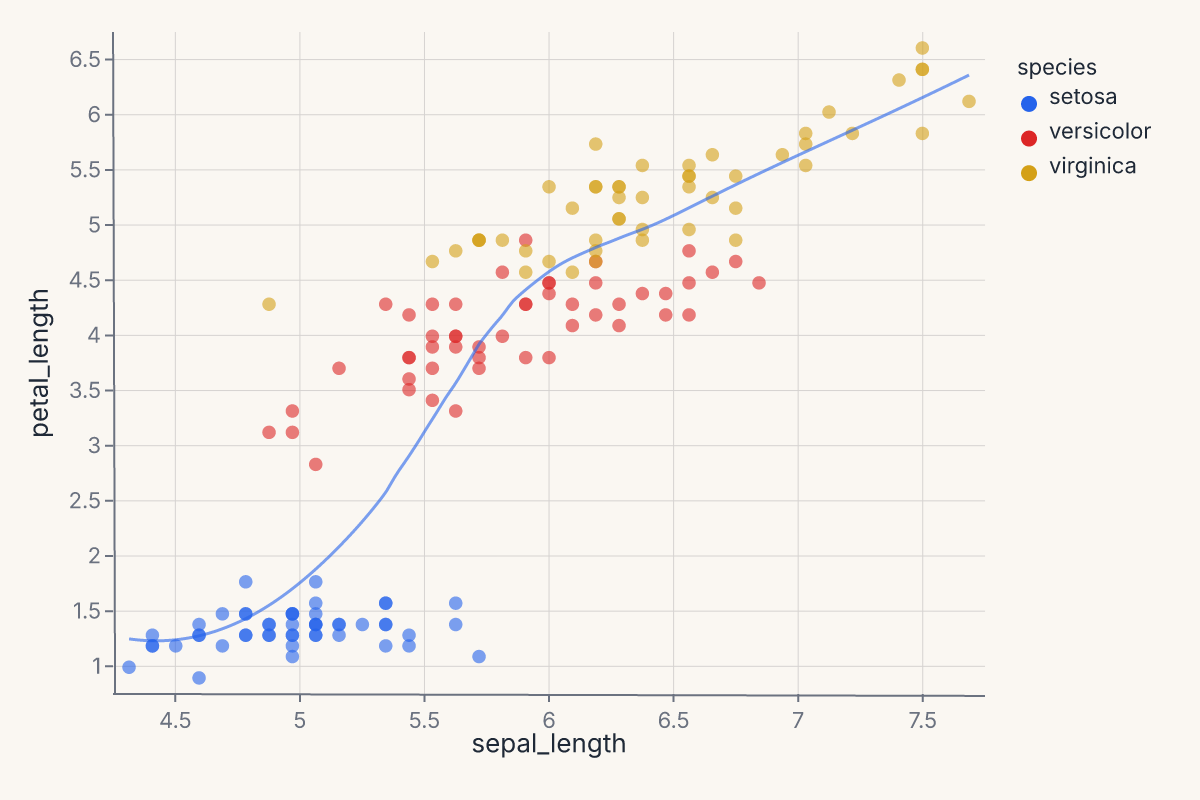

layered = points + trend
assert layered.show_svg().startswith("<svg")

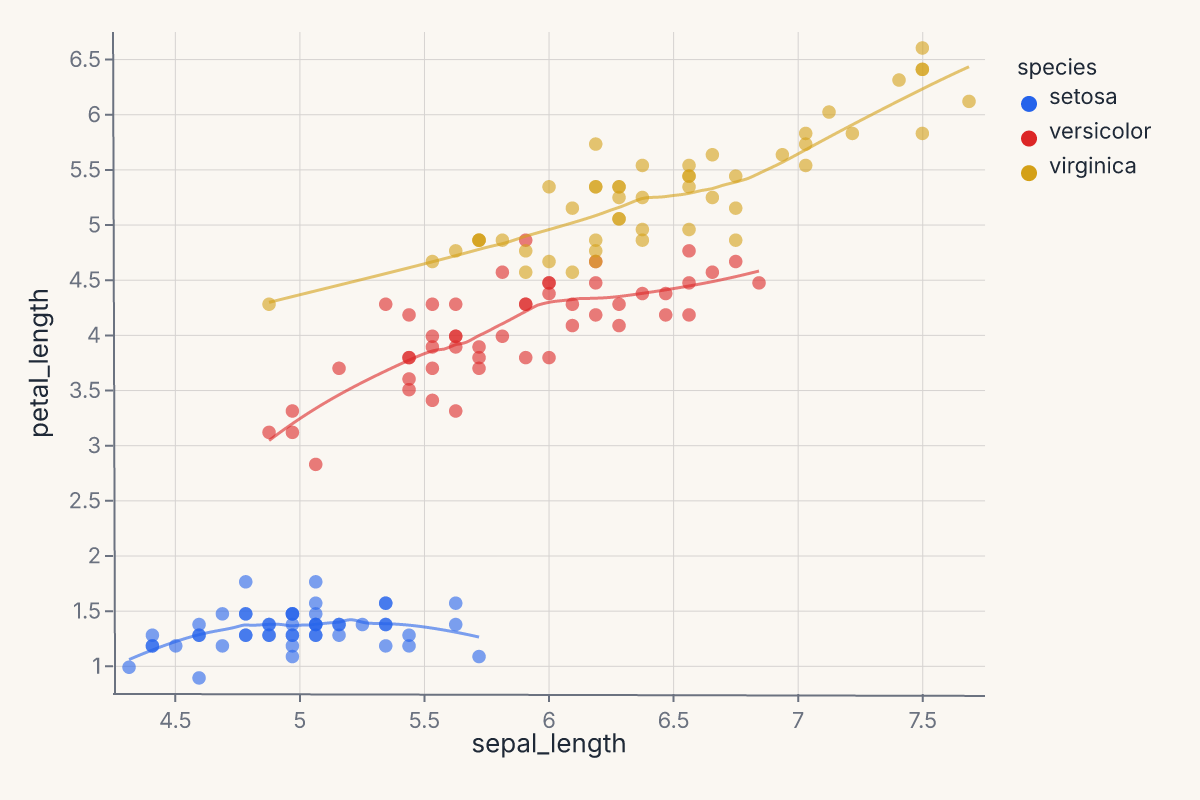

Layered charts share axes by construction: both marks are drawn against the same x/y scales, the same color scale, and the same plot region. Each layer keeps its own mark and any layer-specific encoding overrides, but the shared encodings apply uniformly.

Use layering when:

• You want a regression overlay (mark_smooth) on a scatter (mark_point).
• You want a confidence band (mark_ribbon / mark_errorband) under a line.
• You want value labels (mark_text) on top of bars.
• You want multiple statistical summaries (mean line + min/max ribbon) on one chart.

Use concatenation (next section) when the charts should not share axes.

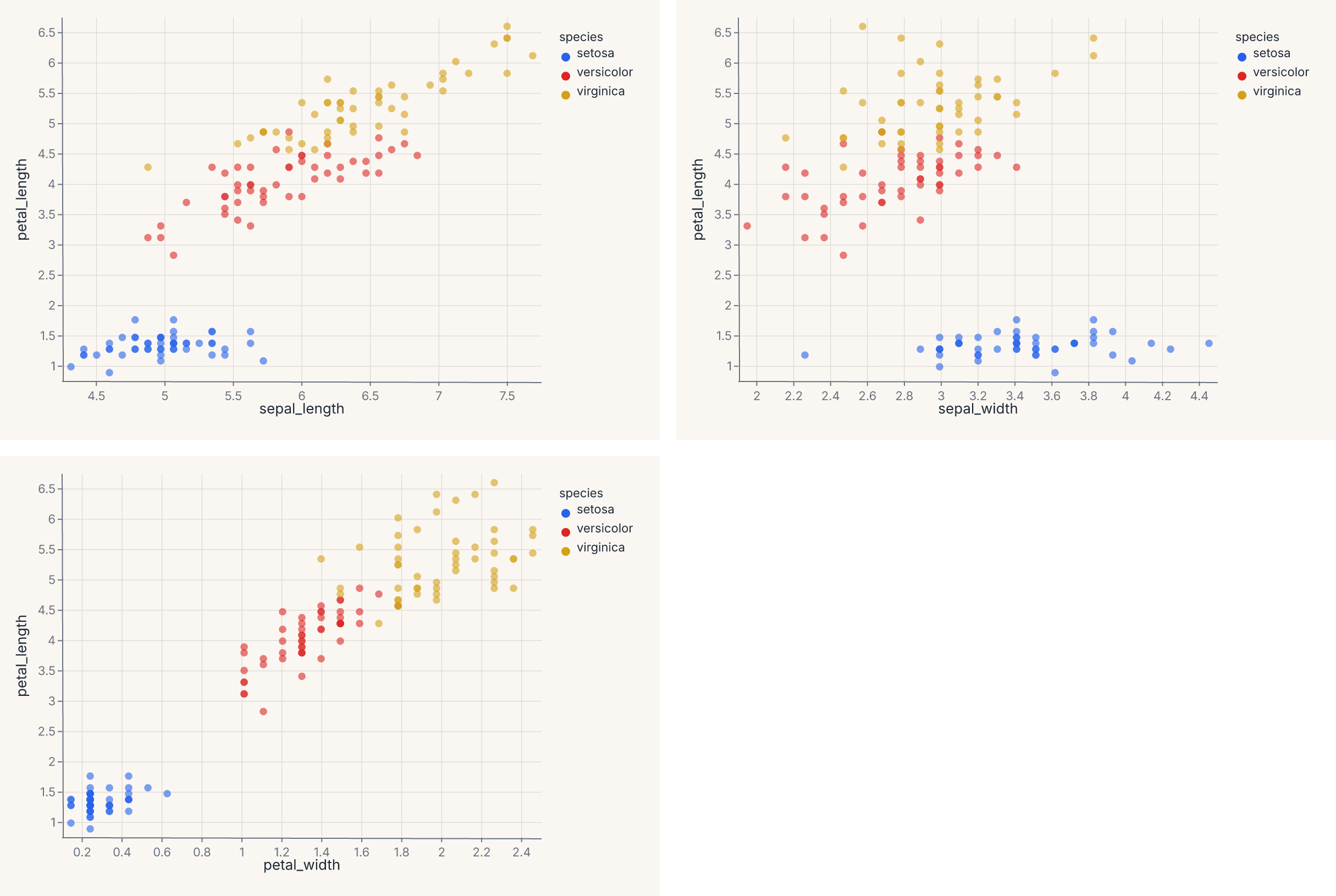

Horizontal and vertical concatenation¶

Concatenation places independent charts next to each other, with each retaining its own scales, axes, and legend. There is no shared x/y; only the visual layout connects them.

The | operator produces an HConcatChart; & produces a VConcatChart:

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
scatter = (
    fm.Chart(iris)
    .mark_point()
    .encode(x="sepal_length", y="petal_length", color="species:N")
)
distribution = (
    fm.Chart(iris)
    .mark_boxplot()
    .encode(x="species:N", y="sepal_length")
)

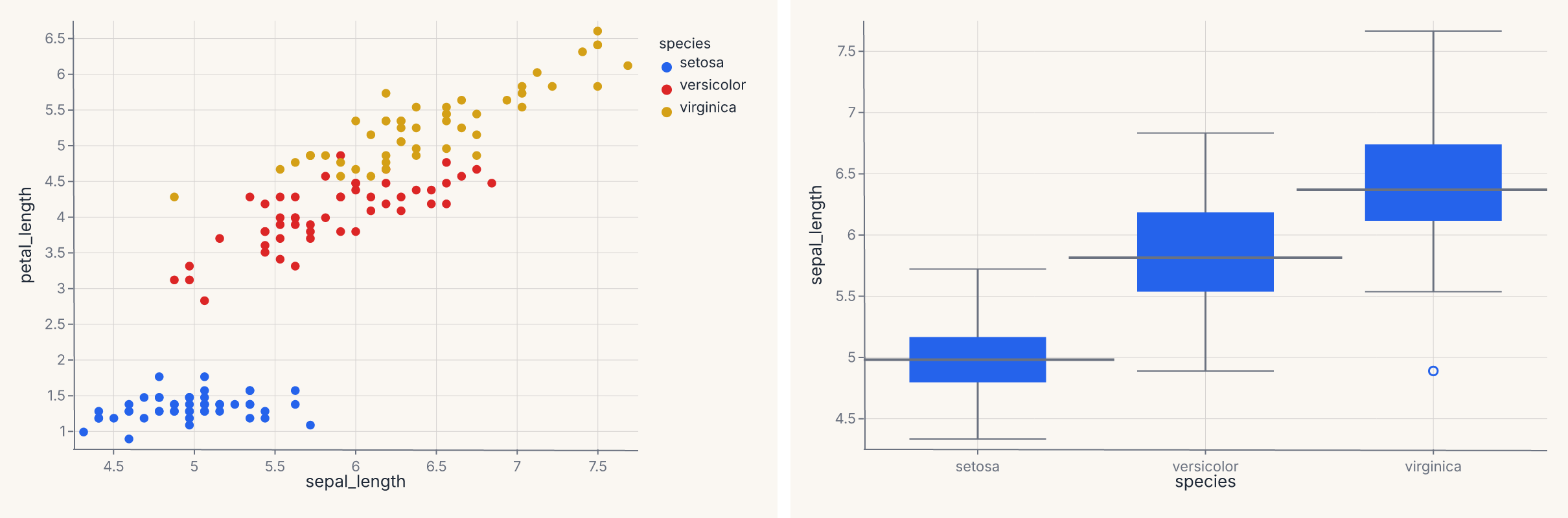

side_by_side = scatter | distribution
assert side_by_side.show_svg().startswith("<svg")

The & operator stacks the same two charts vertically:

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
scatter = fm.Chart(iris).mark_point().encode(x="sepal_length", y="petal_length", color="species:N")
distribution = fm.Chart(iris).mark_boxplot().encode(x="species:N", y="sepal_length")

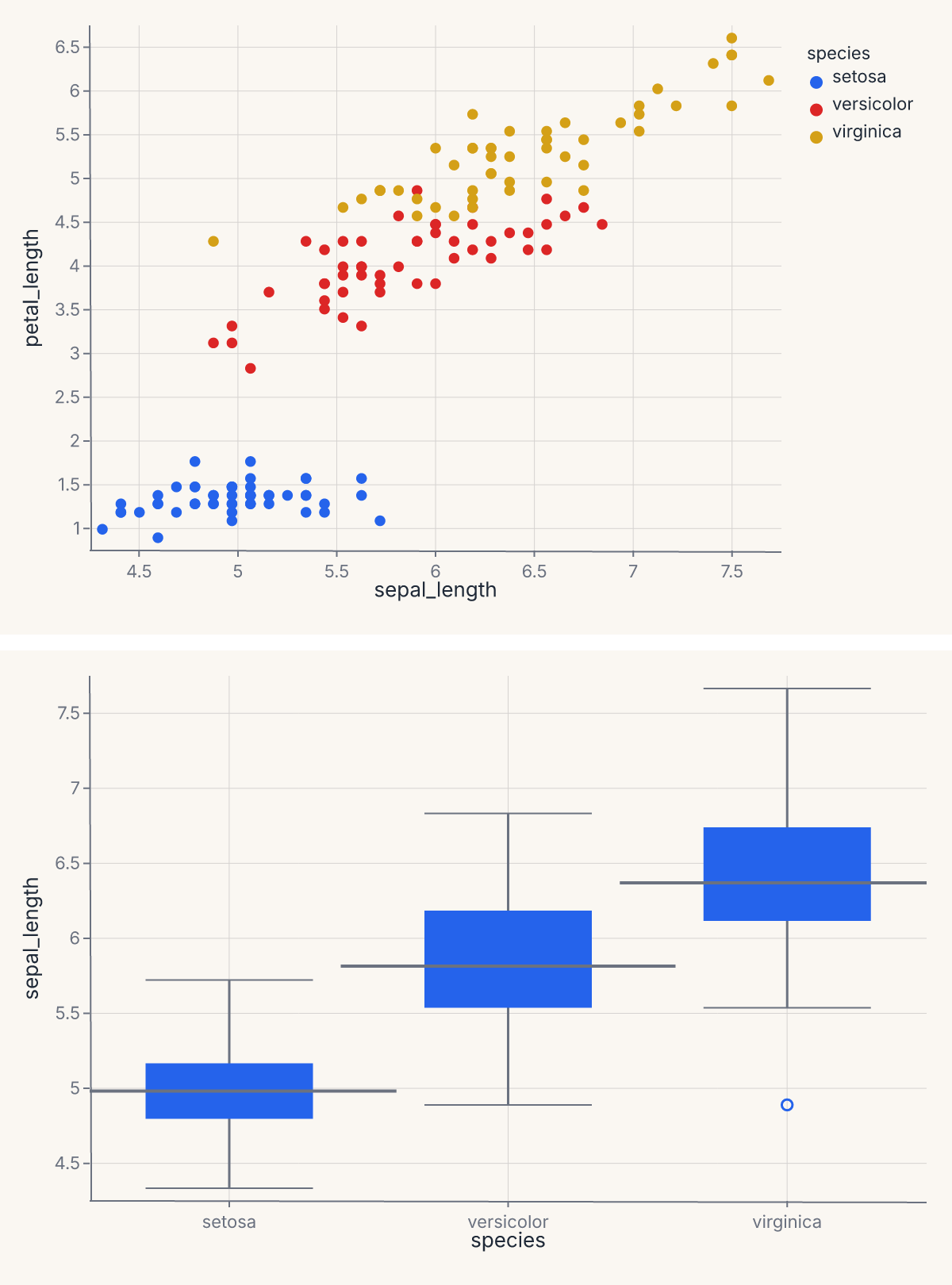

stacked = scatter & distribution
assert stacked.show_svg().startswith("<svg")

You can chain operators to compose deeper trees: (a | b) & (c | d) produces a 2 × 2 grid where the two rows have different charts and the left and right columns differ within each row. The operators are left-associative and follow normal Python precedence.

HConcatChart and VConcatChart also accept explicit list construction with a spacing keyword for fine control:

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
a = fm.Chart(iris).mark_point().encode(x="sepal_length", y="petal_length")
b = fm.Chart(iris).mark_point().encode(x="sepal_width", y="petal_width")
c = fm.Chart(iris).mark_histogram().encode(x="sepal_length")

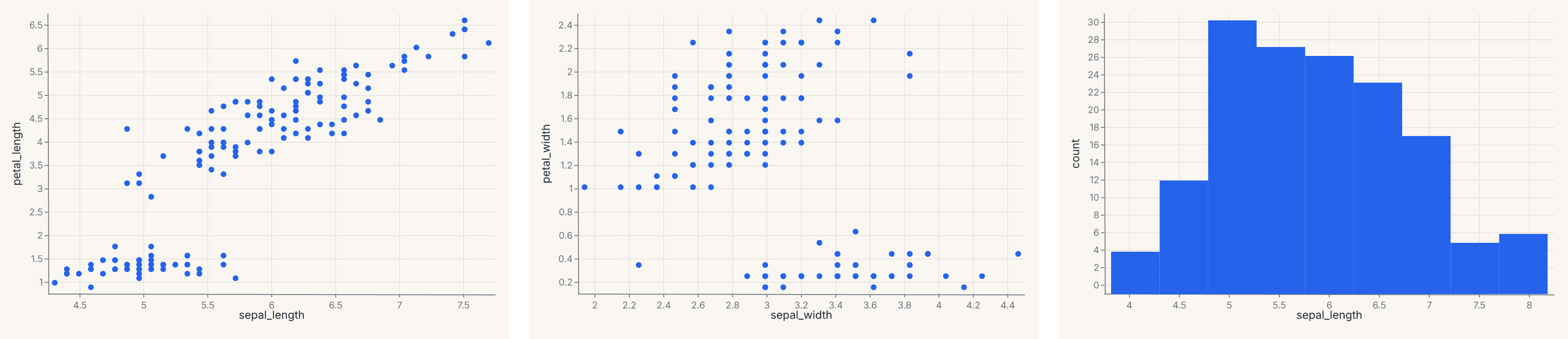

trio = fm.HConcatChart([a, b, c], spacing=24.0)
assert trio.show_svg().startswith("<svg")

The explicit form is useful when you want to control spacing or pass more than two charts in one call.

Top-level convenience functions¶

fm.hconcat() and fm.vconcat() are shorthand for building concat layouts from variadic arguments:

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
a = fm.Chart(iris).mark_point().encode(x="sepal_length", y="petal_length")
b = fm.Chart(iris).mark_histogram().encode(x="sepal_length")
c = fm.Chart(iris).mark_boxplot().encode(x="species:N", y="sepal_length")

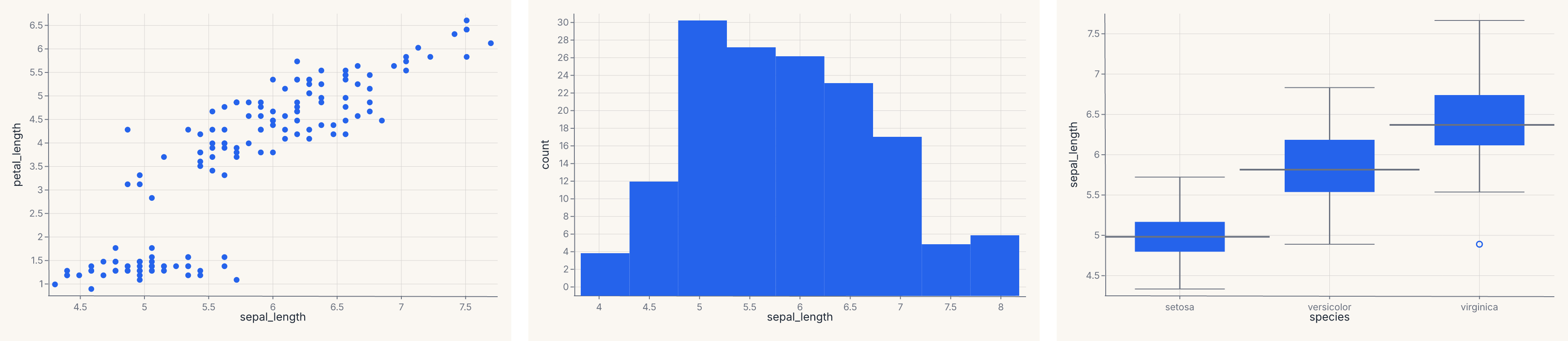

row = fm.hconcat(a, b, c, spacing=20.0)
assert row.show_svg().startswith("<svg")

These are equivalent to HConcatChart([a, b, c]) / VConcatChart([a, b, c]) but read more naturally at the call site. Use them when you have more than two charts or want explicit spacing control; use the | / & operators for quick two-chart layouts.

Joint distribution with marginals¶

JointChart lays out a central chart with optional marginal plots on the top and right. It's the same shape as seaborn's jointplot — a scatter with marginal histograms is the canonical example.

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
center = (
    fm.Chart(iris)
    .mark_point()
    .encode(x="sepal_length", y="petal_length", color="species:N")
)
top = fm.Chart(iris).mark_histogram().encode(x="sepal_length")

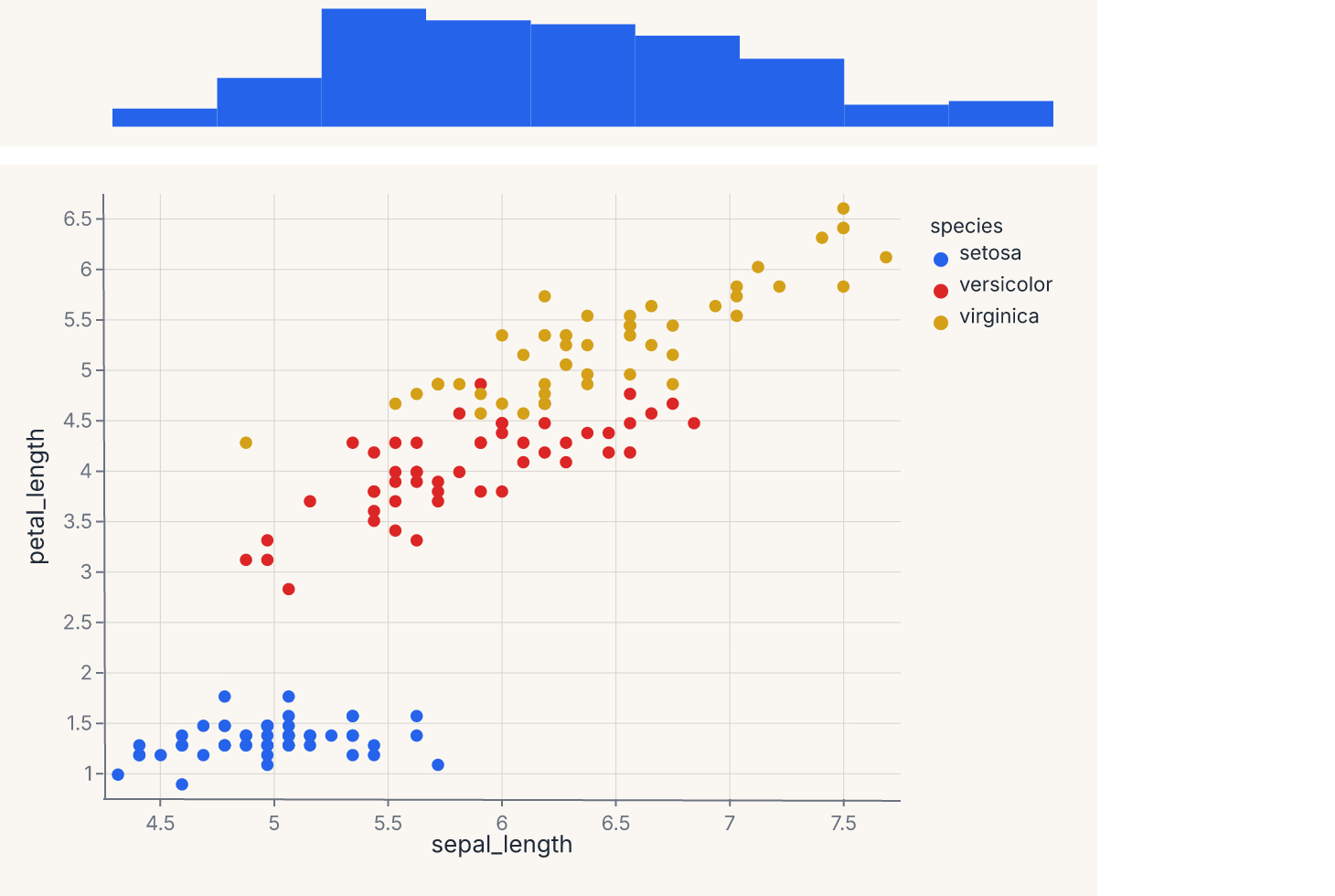

joint = fm.JointChart(center, top=top)
assert joint.show_svg().startswith("<svg")

The center chart shares its x-axis with the top marginal. JointChart also accepts a right= keyword that places a marginal on the right edge sharing the y-axis; the right marginal needs to be a chart authored with the correct orientation for that side. The ratio parameter (default 5) controls how much vertical space the center chart takes versus the marginal — ratio=5 means the center is 5× taller than the top marginal.

If you want a one-line entry point that handles both marginals and the orientation for you, jointplot in ferrum.plots is the convenience helper that builds a JointChart automatically.

Repeating a template across fields¶

RepeatChart takes a template chart and replicates it across a grid of fields. Each cell in the grid is the template with one or both encoding channels replaced by the per-cell field name.

The template uses Repeat.column, Repeat.row, or Repeat.layer sentinels (from ferrum.Repeat) to mark which encoding channel receives the substitution:

import ferrum as fm
import polars as pl
from sklearn.datasets import load_iris

raw = load_iris()
iris = pl.DataFrame(raw.data, schema=["sepal_length", "sepal_width", "petal_length", "petal_width"]).with_columns(
    species=pl.Series([raw.target_names[t] for t in raw.target])
)
template = (
    fm.Chart(iris)
    .mark_point()
    .encode(x=fm.Repeat.column, y=fm.Repeat.row, color="species:N")
)

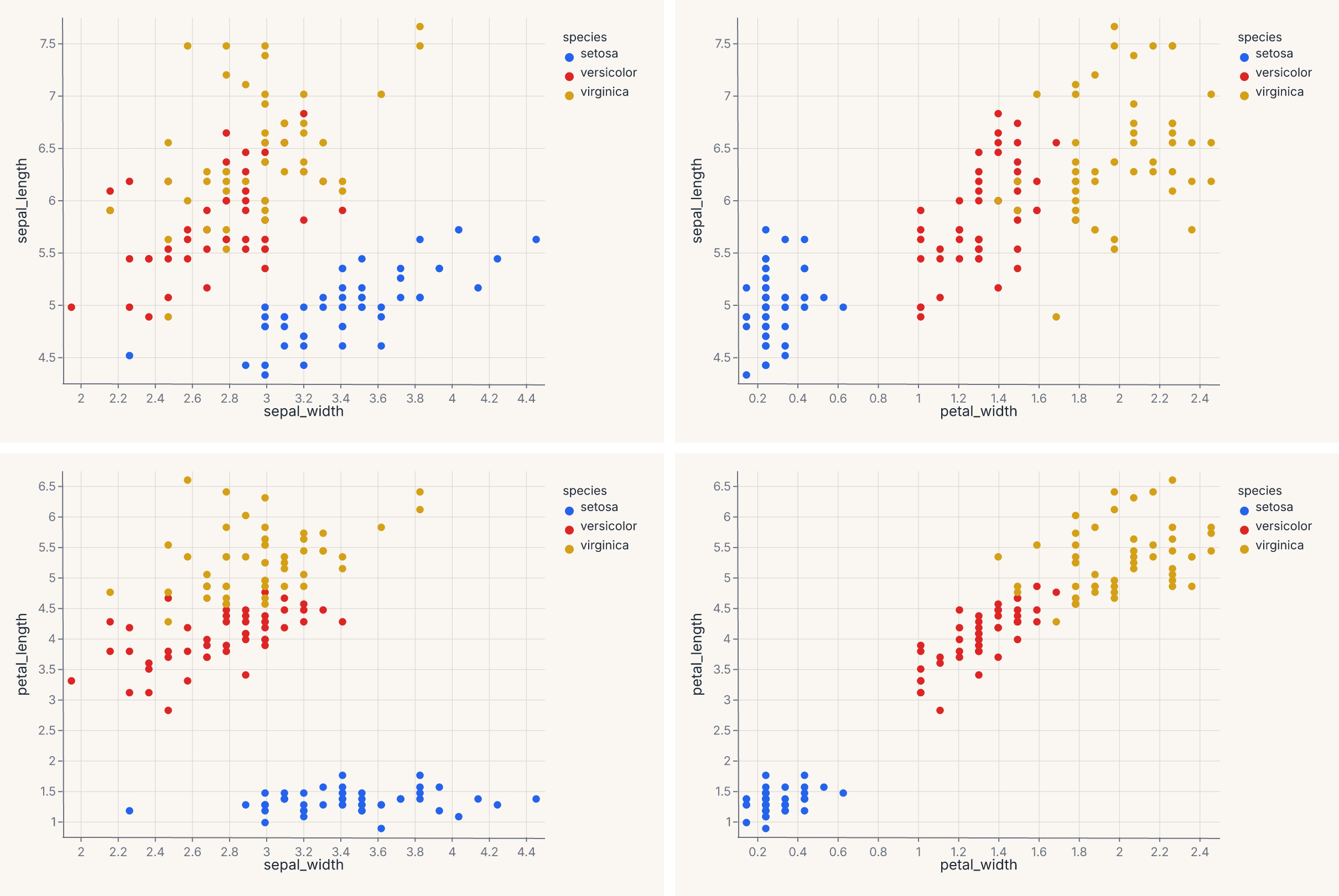

grid = fm.RepeatChart(
    template,
    row=["sepal_length", "petal_length"],
    column=["sepal_width", "petal_width"],
)
assert grid.show_svg().startswith("<svg")

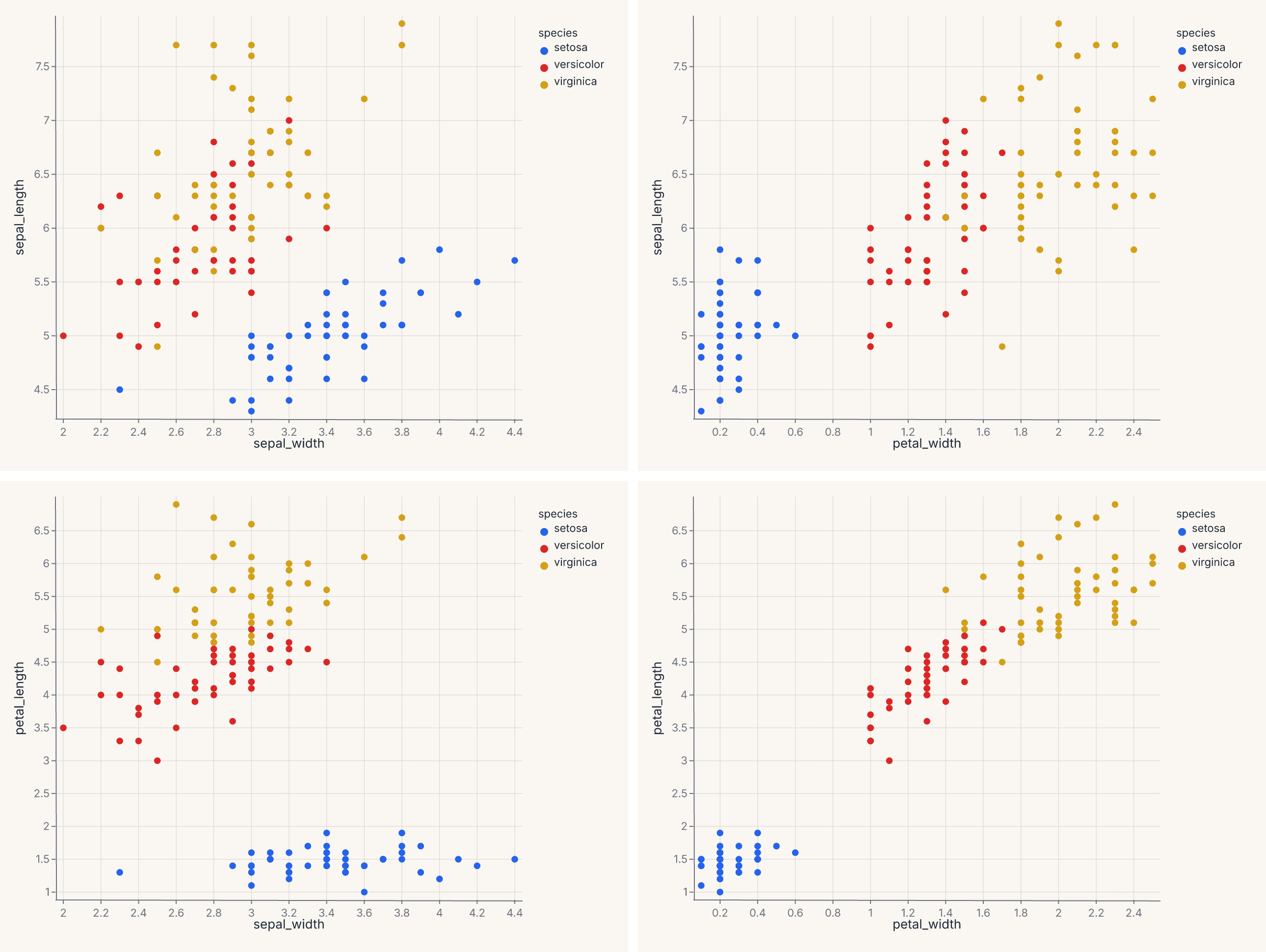

This produces a 2 × 2 grid of scatter plots, each cell pairing one row field on the y axis with one column field on the x axis. Pass only column= (with a fixed y in the template) for a single row of plots; pass only row= (with a fixed x) for a single column.

Use RepeatChart when:

• You want to see one variable plotted against many others (a pairs-plot column).
• You want a small-multiples layout where the encoding channel changes per cell, not just a filter on the data.

For a small-multiples layout where the data is partitioned across cells (one panel per group), use the facet encoding channel instead. The difference is structural: faceting splits one chart by a categorical field; RepeatChart substitutes a different encoding into a template.

ferrum.plots.pairplot is the figure-level helper that uses RepeatChart internally to produce a full pairs grid.

Clustered heatmap with dendrograms¶

ClusterMapChart is a specialized composition: a heatmap with row and column dendrograms attached, computed from a hierarchical clustering of the data. The output is a 2 × 2 grid — heatmap (bottom-right), column dendrogram (top-right), row dendrogram (bottom-left, rotated), empty (top-left).

For most use cases, the figure-level helper clustermap in ferrum.plots is the right entry point. Direct ClusterMapChart construction is for when you want fine control over the linkage method, the dendrogram styling, or the heatmap encoding details.

Picking a composition operator¶

A decision guide for the common cases:

• Multiple marks, one set of axes? Use + (layer). Examples: scatter + smooth, line + ribbon, bars + text labels.
• Multiple charts, no shared axes, side-by-side? Use | (HConcat).
• Multiple charts, no shared axes, stacked vertically? Use & (VConcat).
• Central plot with marginals on top and right? Use JointChart (or the jointplot helper).
• Template chart repeated across a grid of fields? Use RepeatChart (or pairplot for the canonical pairs case).
• Heatmap with hierarchical clustering structure? Use ClusterMapChart (or the clustermap helper).
• Same chart broken into panels by a categorical field? That is not composition — use the facet / facet_row / facet_col encoding channels (see Marks & encodings).

Composition is recursive¶

Compound views are themselves charts (in the structural sense): you can layer a Layer, concatenate a JointChart, or place a RepeatChart inside an HConcatChart. The operators compose freely.

That recursive composition is what makes complex dashboards-as-static-images viable. A four-panel model report — one ROC curve, one calibration plot, one confusion matrix, one residuals plot — is (roc | calibration) & (confusion | residuals). Same grammar, same theme, same .save().

Low-level SVG composition¶

The composition classes above produce their final SVG output using three low-level helpers: compose_svg_horizontal, compose_svg_vertical, and compose_svg_grid. These are Rust-backed functions that stitch pre-rendered SVG strings into a single SVG document with configurable spacing and alignment.

You rarely need them directly — the |, &, and class-based APIs handle layout automatically. They exist for advanced cases where you have pre-rendered SVG strings and want to combine them without going through the chart object model.

Where to go next¶

• Marks & encodings for what goes into each chart before composition starts.
• Figure-level helpers for convenience entry points (jointplot, pairplot, clustermap) that wrap the composition operators.
• Themes for how to apply consistent styling across composed charts.
• Model diagnostics for the canonical use case: composing multiple diagnostic plots into a model evaluation view.
• Interactive rendering for how selections and linked views work across composed charts.
• The API Reference for the full signatures of HConcatChart, VConcatChart, JointChart, RepeatChart, and ClusterMapChart.
